Free standing stackable outdoor aluminium seats
Description
Stackable outdoor seating
Strong aluminium seats that are very light and perfect for your temporary seating both indoor and outdoors. Very versatile for lots of situations and easily stackable and easy to move and store.
| 1.5m | Seat 3 Adults |  |
| 2m | Seat 4 Adults |  |
| 3m | Seat 6 Adults |  |
| 4m | Seat 8 Adults |  |
| 6m | Seat 12 Adults |  |

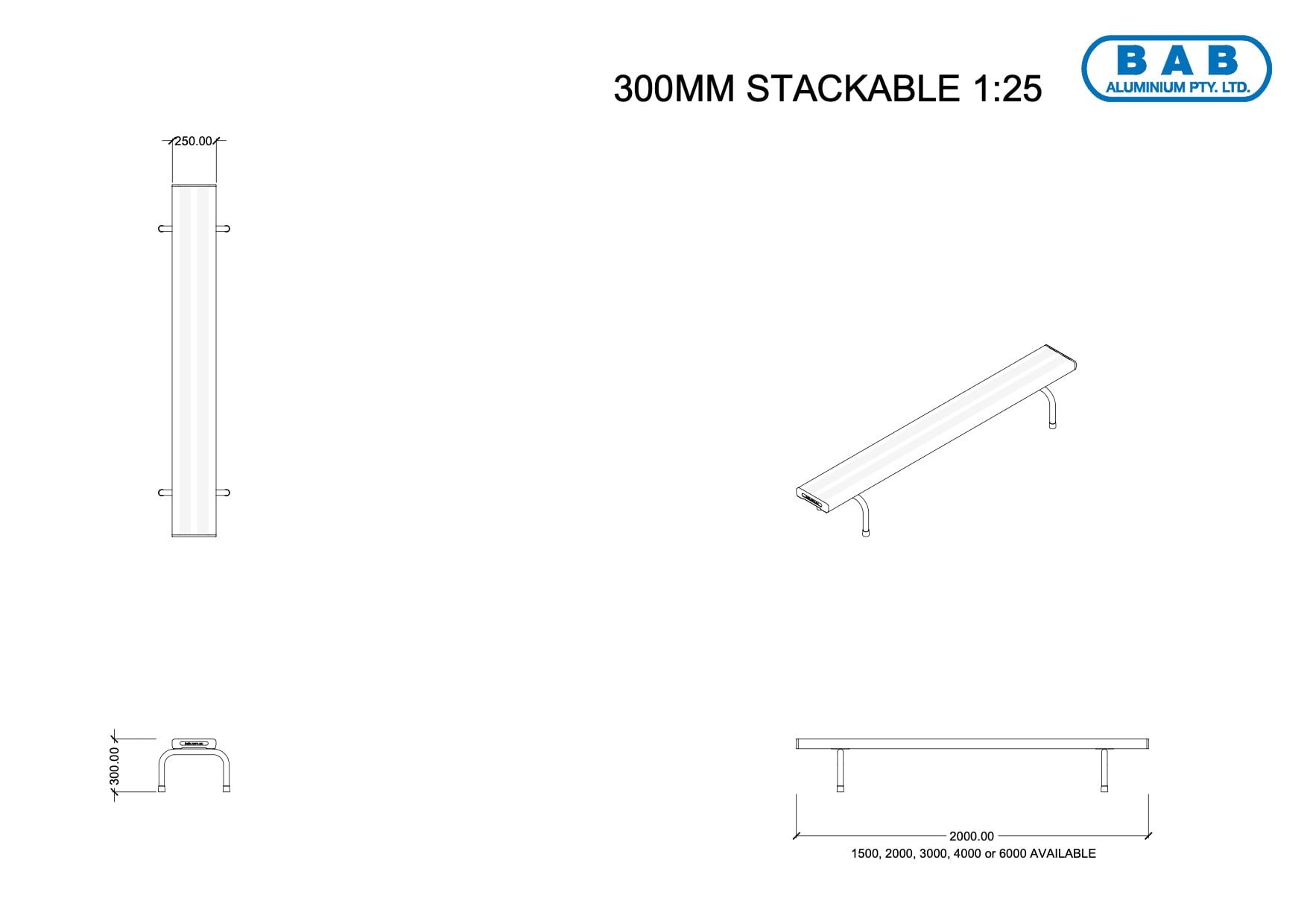

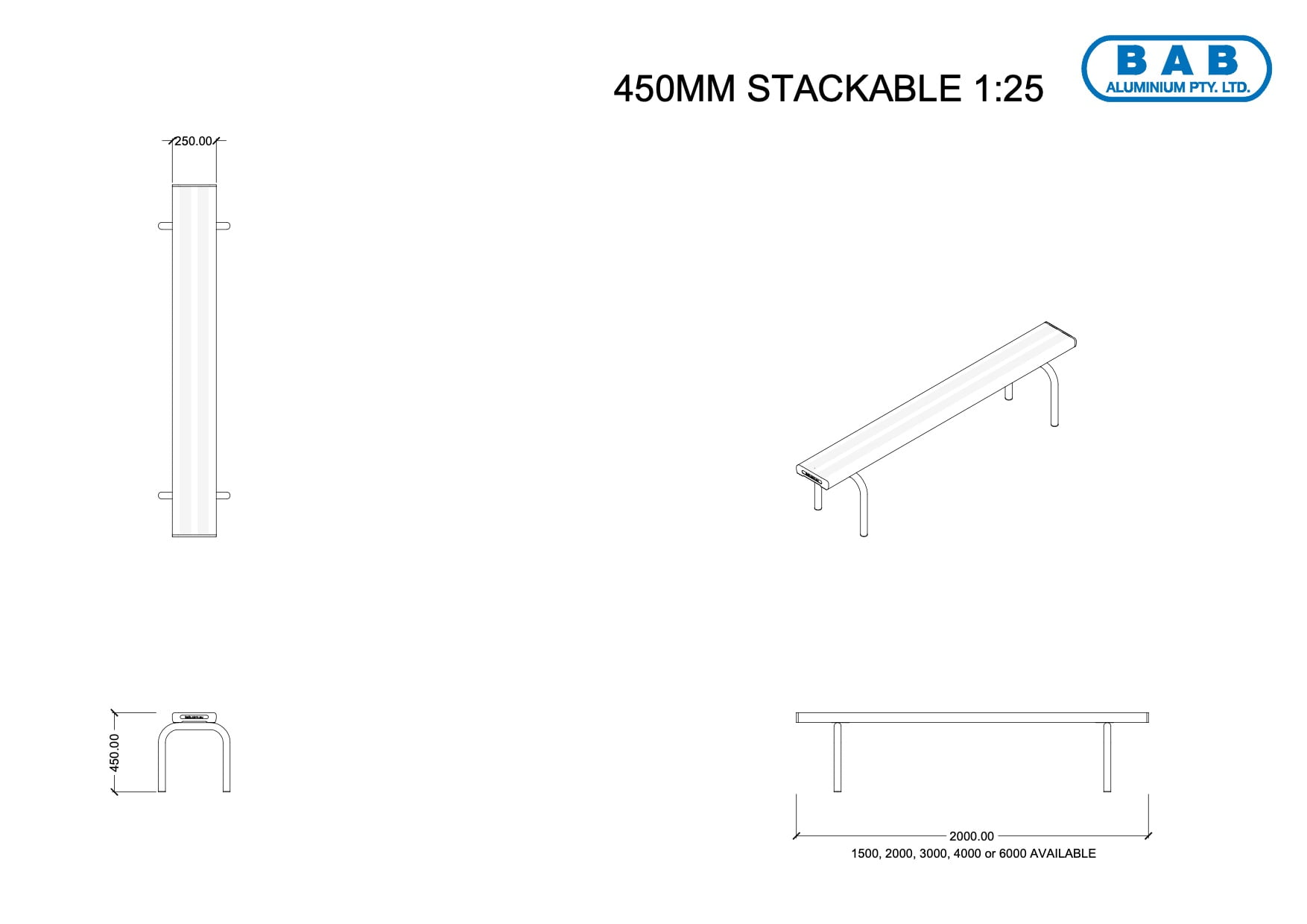

Technical Data
Download full technical data here. For more info please contact Brian 1300 823 125 or email us.
Description
A complete proprietary system including heavy duty aluminium support frames and anodised aluminium seat plank with cast aluminium end caps.
Aluminium Seat Section
Extruded aluminium alloy (6060-T5) seat plank 250mm wide with two longitudinal flanged ribs as part of the extrusion. The longitudinal ribs run continuously for the length of the seat and provide fastening for the support frames – Nominal wall thickness – 2.5mm – Finish – Clear anodised 15 microns or Decowood.
Support Frames
Fabricated from 40 x 3mm tube (6060-T5), 32 x 3mm tube (6060 T5) and 80 x 10mm flat bar (6060-T5) The frames are welded according to (AS-1554) – Finish – as extruded or powder coated.
Seat End Caps
Manufactured from cast aluminium to fit seat extrusion – Finish – as cast or powder coated – Manufacturers name cast into end cap.
Assembly
Fit end caps using two (2) x 4.8mm aluminium pop rivets through the underside longitudinal flanges Fit support frames using two (2) x 25 x 6mm (minimum) zinc-plated bolts with nylon insert nuts through the underside longitudinal flanges.
Installation
The Stackable Seats are Freestanding.
