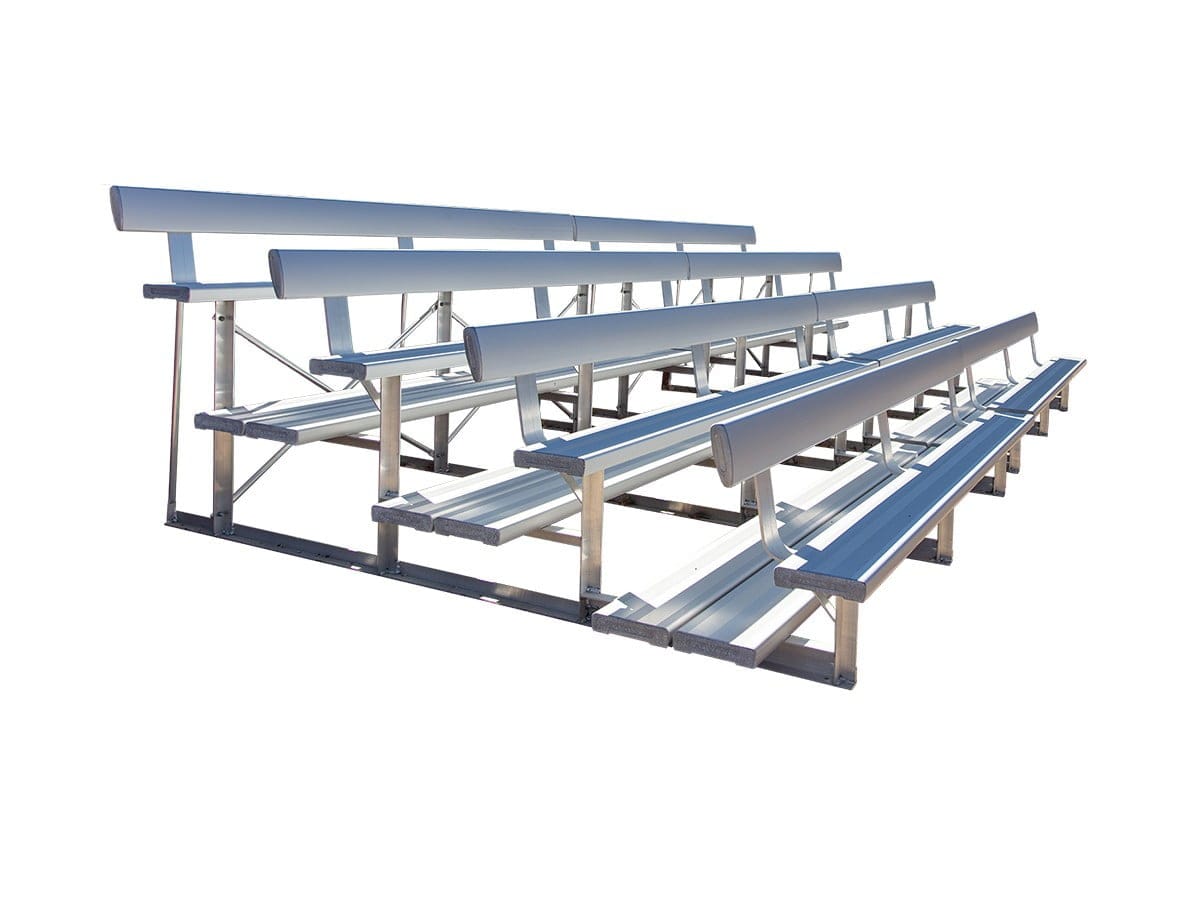

Grandstand GS3
$2,430.00 – $8,566.00 plus GST
Strong aluminium construction for your mini grandstand needs. Perfectly safe, lightweight, can be moved, can be above ground bolted.
Share on facebook
Share on linkedin
Share on email
Description
Aluminium Grandstands
Strong aluminium construction for your grandstand needs. Perfectly safe, lightweight, can be moved, can be above ground bolted.
| 1.5m | Seat 3 Adults |  |
| 2m | Seat 4 Adults |  |
| 3m | Seat 6 Adults |  |
| 4m | Seat 8 Adults |  |
| 6m | Seat 12 Adults |  |
Aluminium Grandstand Key Features
- Rust resistant
- Mildew Resistant
- Clean and attractive
- Never require painting
- High impact resistant
- 100% recyclable
- Pressure cleaning resistant
- Our Grandstands don’t erode in the sun like traditional timber
- Guaranteed low cost maintenance
- High traffic seating
- Our grandstands never split or crack
- 20 Year Warranty
Technical Data
Download full technical data here. For more info please contact Brian 1300 823 125 or email us.
Description
A complete proprietary system including heavy duty aluminium support frames and anodised aluminium seat plank with cast aluminium end caps.
Aluminium Seat Section
Extruded aluminium alloy (6060-T5) seat plank 250mm wide with two longitudinal flanged ribs as part of the extrusion. The longitudinal ribs run continuously for the length of the seat and provide fastening for the support frames – Nominal wall thickness – 2.5mm – Finish – Clear anodised 15 microns or Decowood.
Support Frames
Fabricated from 50 x 50 x 6mm tube (6060-T5), 100 x 10mm flat bar (6060-T5) The frames are welded according to (AS-1554) – Finish – as extruded or powder coated.
Seat End Caps
Manufactured from cast aluminium to fit seat extrusion – Finish – as cast or powder coated – Manufacturers name cast into end cap.
Assembly
Fit end caps using two (2) x 4.8mm aluminium pop rivets through the underside longitudinal flanges. Fit support frames using two (2) x 25 x 6mm (minimum) zinc-plated bolts with nylon insert nuts through the underside longitudinal flanges.
Installation
The stands are freestanding – however for security the stands have 2 x 12mm holes in each base frame which can beused to skew-peg on grass or dyna-bolt to concrete.
