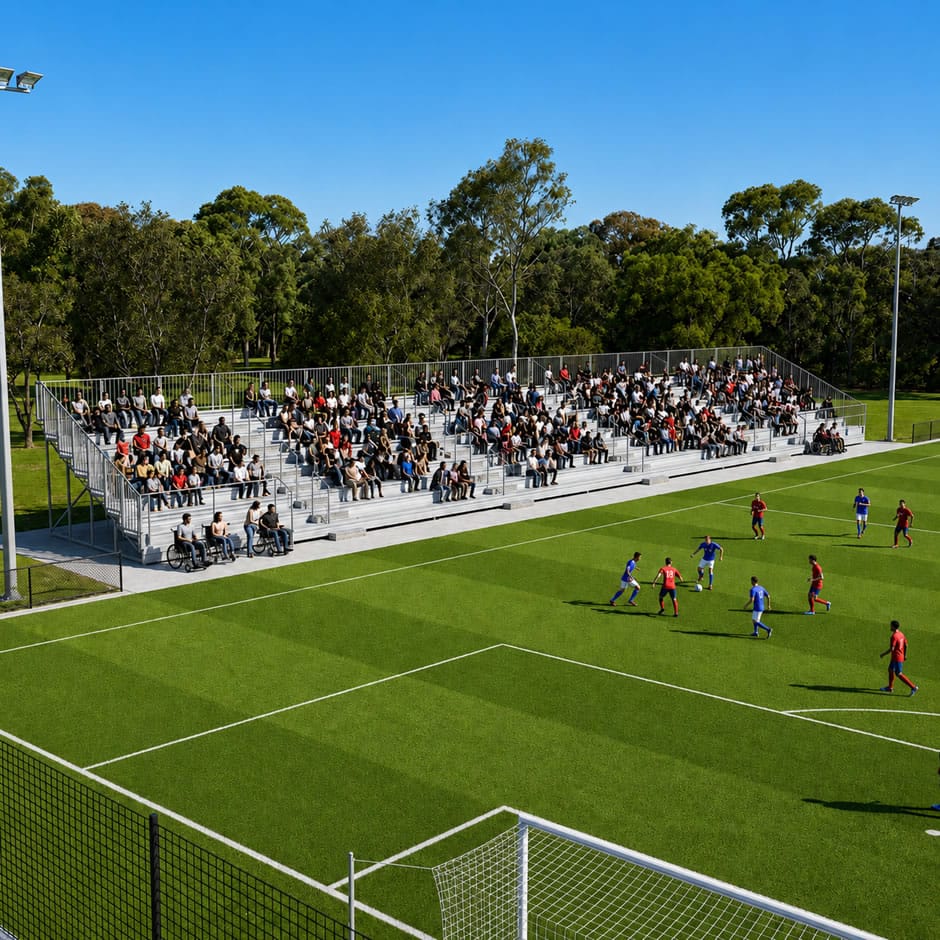

Aluminium Grandstands
Strong aluminium construction for your grandstand needs. Perfectly safe, lightweight, can be moved, can be above ground bolted.6m | Seat 12 Adults | |
12m | Seat 24 Adults | |
18m | Seat 36 Adults | |
24m | Seat 24 Adults | |
30m | Seat 60 Adults |
Aluminium Grandstand Key Features
- Rust resistant
- Mildew Resistant
- Clean and attractive
- Never require painting
- High impact resistant
- 100% recyclable
- Pressure cleaning resistant
- Our Grandstands don’t erode in the sun like traditional timber
- Guaranteed low cost maintenance
- High traffic seating
- Our grandstands never split or crack
- 20 Year Warranty
For more info please contact Brian 1300 823 125 or email us.

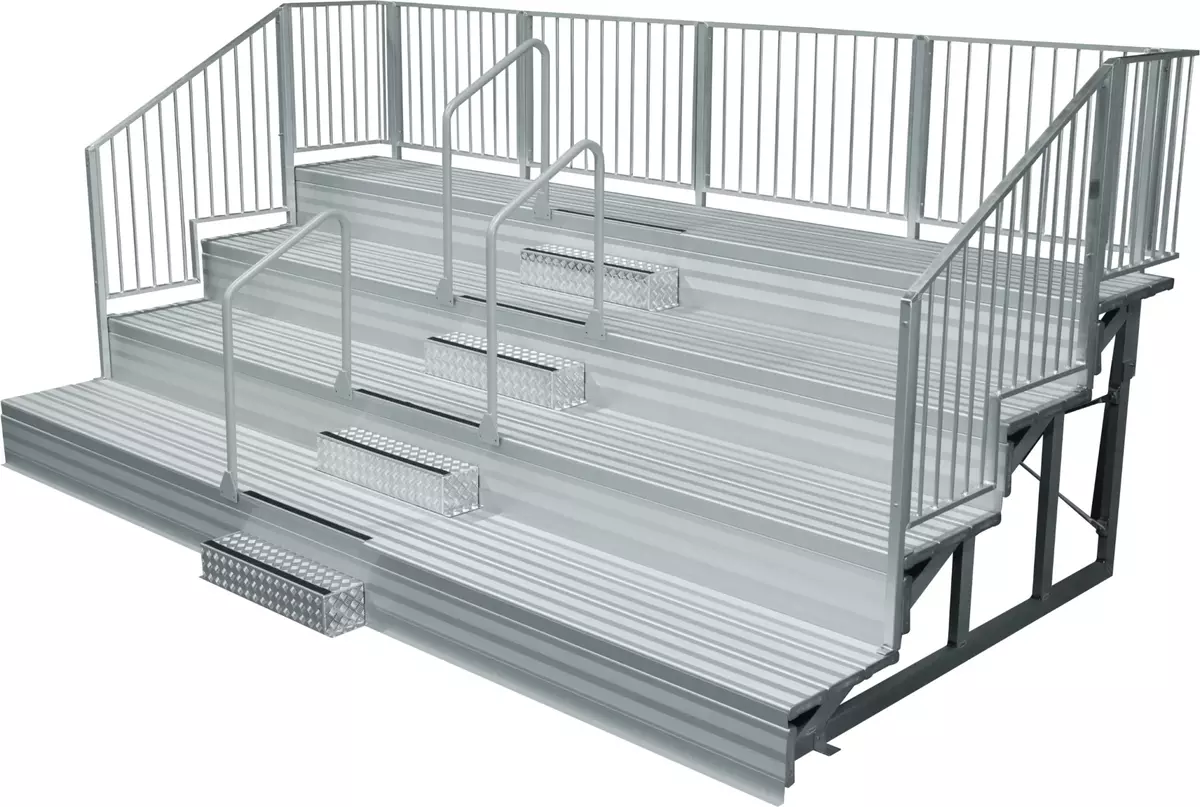

Description
A complete proprietary system including heavy duty aluminium support frames and anodised aluminium seat plank with cast aluminium end caps.
Aluminium Seat Section
Extruded aluminium alloy (6060-T5) seat plank 250mm wide with two longitudinal flanged ribs as part of the extrusion. The longitudinal ribs run continuously for the length of the seat and provide fastening for the support frames – Nominal wall thickness – 2.5mm – Finish – Clear anodised 15 microns or Decowood
Seat End Caps
Manufactured from cast aluminium to fit seat extrusion – Finish – as cast or powder coated – Manufacturers name cast into end cap. Fit end caps using two (2) x 4.8mm aluminium pop rivets through the underside longitudinal flanges Fit support frames using two (2) x 25 x 6mm (minimum) zinc-plated bolts with nylon insert nuts through the underside longitudinal flanges.
Support Frames
Fabricated from 100 x 50 x 3mm RHS (6060-T5), 100 x 10mm flat bar (6060-T5), 25 x 3 tube (6060-T5) and 50 x 50 x 2.5mm SHS (6060-T5). The frames are welded according to (AS-1554) – Finish – as extruded or powder coated.
Handrail and Supporting Posts
Fabricated from 50 x 25 x 3mm RHS (6060 T5), 20 x 16mm tube (6060 T5), 50 x 50 x 4mm SHS (6060T5) and 100 x 10mm flat bar (6060 T5). The rails and posts are welded according to (AS-1554) – Finish – as extruded or powder coated.
Safety Grab Rails
Fabricated from 50 x 3mm Tube (6060-T4) and 6mm Sheet (6060-T5). The Safety Grab Rails are welded according to (AS-1554) – Finish –powder coated.
Safety Access Steps
Fabricated from 3mm Treadplate (6060-T5). The Safety Access Steps are welded according to (AS-1554) . Finish – as rolled. All steps have a Stair Tread Bullnose attached – “Anti-slip and Sight Impaired compliant to (AS: 1428.1-2009)”
Installation
GS5 grandstands must be fitted to a concrete slab – Minimum 100mm steel mesh reinforced. (For Cyclone rated grandstands a Structural Engineer must specify slab).
